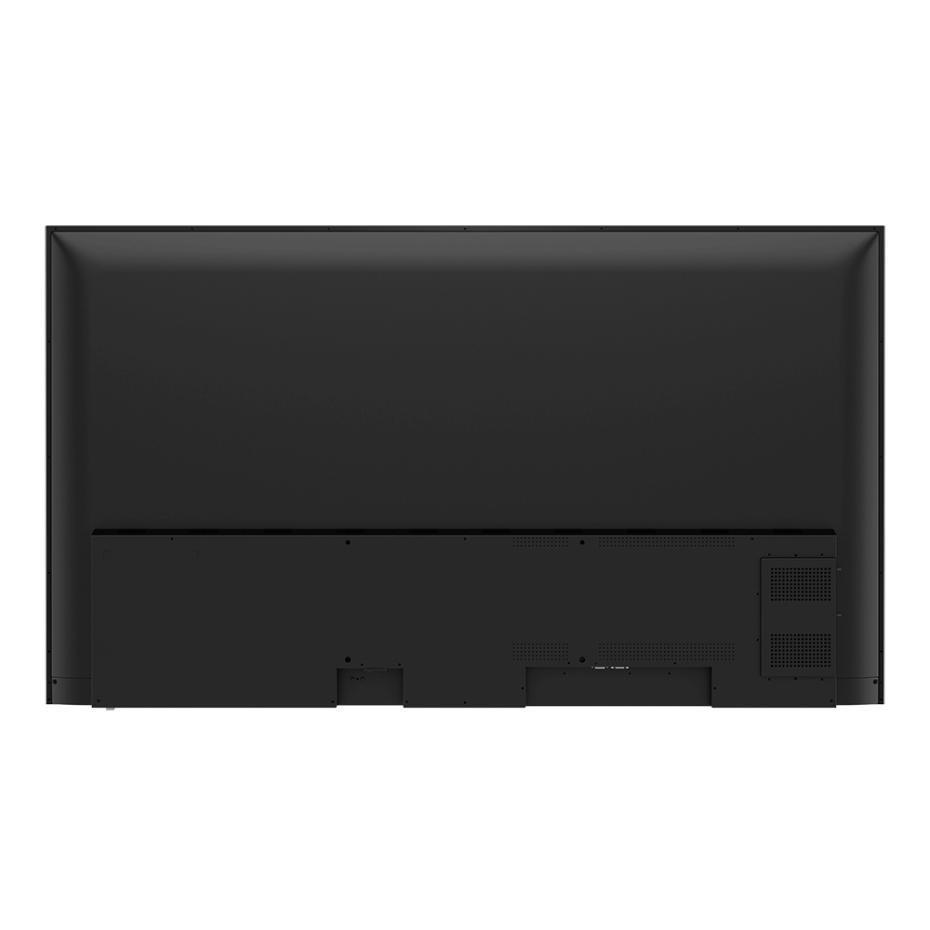

All-in-one smart signage with ultra-thin bezels
Resolution UHD 3840 × 2160 pixels
Active area 1428.5 × 803.5 mm
Brightness (typical) 450 nits
Contrast ratio (typical) 1200:1
Operation hours 18 hours / 7 days
Orientation Landscape and Portrait
Light life (typical) 30,000 hrs
System
Memory | Storage 3GB I 16GB
Connectivity
HDMI (in | out) 2 × HDMI 2.0 | 1 × HDMI 1.3
DisplayPort (in | out) 1 × 1.2 | No
3.5 mm audio (in | out) No | line-out
SPDIF (in | out) 0 | 1 (optical)
USB-A 2 × 2.0 + 1 × 3.2 Gen1 for OPS
Ethernet LAN 10 / 100 Mbps (Android)
Built-in peripherals
Power
Power AC 100-240V 50/60Hz
Maximum Power Consumption 320 W
Physical
Dimensions (W x H x D) 1450.6 × 828.1 × 78.5 mm (57.1 × 32.6 × 3.1 inch)
Shipping dimensions (W x H x D) 1605 × 965 × 220 mm (63.2 × 38 × 8.7 inch)
Weight (product I shipping) 22.9 kg | 33.6 kg (50.5 lbs | 74.1 lbs)
Mount (screws) VESA 400 × 200 mm (4 × M6 × 10L)
Software
Wireless screen sharing InstaShare 1 (BenQ App Store)
Broadcast system X-Sign Broadcast
Content management X-Sign
Accessories
Cables 1 × VGA (1.5 m), 1 × HDMI (1.5m)
PWR Cord (by region) WW: × 8 (EU/UK/US/AU/TW/JP/IN/KSA)
